Sample boundaries filtering

Filtering particles by sample boundaries

tutorial-goal
Particle picks filtered by their position in the specimen: particles in the bulk interior (light green) are kept, while those near the top and bottom surfaces (orange) or outside the specimen (red) are removed.

This tutorial picks up where Detecting Sample Boundaries leaves off. There, we trained an octopi model that predicts the valid sample region of a tomogram and fit a slab mesh to it. Here, we put that boundary to work:

  1. Inference — run the trained model across a dataset to obtain segmentation predictions.
  2. Post-processing — turn each raw prediction into a clean, fitted valid-sample boundary mesh.
  3. Particle filtering — use the boundary to select particle picks by where they sit in the specimen, e.g. keeping only particles in the bulk interior, away from the air–water interface near the top and bottom surfaces.

We continue to use the evaluation project config_evaluate.json and tomograms at 7.84 Å (wbp@7.84) from the previous tutorial.

Units

copick coordinates and distances are always expressed in Ångström (Å). 20 nm = 200 Å.

Step 0: Prerequisites

This tutorial assumes you have completed Detecting Sample Boundaries, which produced everything we build on:

  • a trained boundary model (outputs/model_config.yaml + outputs/best_model_weights.pth);
  • the evaluation project config_evaluate.json, with the sample, valid-area, and valid-sample objects defined;
  • the per-run valid-area box meshes (valid-area:bob/0), created with copick process validbox.

For the final, particle-filtering step you additionally need a set of particle picks to filter. Any pick set works — here we assume a colleague, Alice, has already localized nucleosomes into nucleosome:alice/0 (for example with octopi or another picking workflow).

The post-processing tools below ship with copick-utils and copick-torch, and inference uses octopi:

pip install "copick[all]" copick-utils copick-torch octopi

Starting from scratch? (inference only)

If you did not follow the previous tutorial — for example you just want to run an already trained model on your own data — you can create the project and the valid-area boxes from scratch with the two snippets below.

1. Set up the copick project

Create an overlay project backed by Data Portal tomograms (swap -ds/--overlay for your own data source), then add the objects the boundary pipeline uses. An inference-only project does not need the top-layer/bottom-layer picking objects from the previous tutorial.

copick config dataportal \
  -ds 10302 \
  --overlay /home/bob/copick_project_evaluate/ \
  --output config_evaluate.json

copick add object -c config_evaluate.json \
  --name sample       --object-type segmentation --label 102 --color "0,0,255,128"
copick add object -c config_evaluate.json \
  --name valid-area   --object-type segmentation --label 103 --color "255,255,0,128"
copick add object -c config_evaluate.json \
  --name valid-sample --object-type segmentation --label 2   --color "0,255,255,128"

# the particle object that will hold the picks you want to filter (Step 3)
copick add object -c config_evaluate.json \
  --name nucleosome   --object-type particle     --label 1   --color "255,0,0,255" --radius 60
2. Create the valid-area boxes

In most TEMs the tilt axis is not exactly parallel to a detector axis, so tomograms have small regions of invalid reconstruction at the corners. copick process validbox computes a 3D box mesh of the valid reconstruction area for every run. Set --angle to your in-plane tilt-axis rotation (here, -6 degrees):

copick process validbox -c config_evaluate.json \
  -t "wbp@7.84" \
  --angle -6 \
  -o "valid-area:bob/0"

Step 1: Run inference across the dataset

octopi segment runs the trained model over a tomogram and writes the resulting segmentation back into the copick project. We reuse the same tomogram URI (-uri) as during training and write the prediction (-suri) to the segmentation object under user output.

octopi segment -c config_evaluate.json \
  -mc outputs/model_config.yaml \
  -mw outputs/best_model_weights.pth \
  -uri wbp@7.84 \
  -suri segmentation:output/0 \
  -runs 14114,14132,14137,14163


octopi segment -c config_evaluate.json \
  -mc outputs/model_config.yaml \
  -mw outputs/best_model_weights.pth \
  -uri wbp@7.84 \
  -suri segmentation:output/0
Omitting -runs segments every run in the project.

This writes segmentation:output/0@7.84 for each run — a segmentation in which label 2 marks the predicted valid sample region (label 2 is the valid-sample object from the previous tutorial).

Model ensembles (model soup)

To average several checkpoints, pass comma-separated configs and weights: -mc a.yaml,b.yaml -mw a.pth,b.pth. This often produces noticeably cleaner boundaries than a single model.

raw-prediction raw-prediction

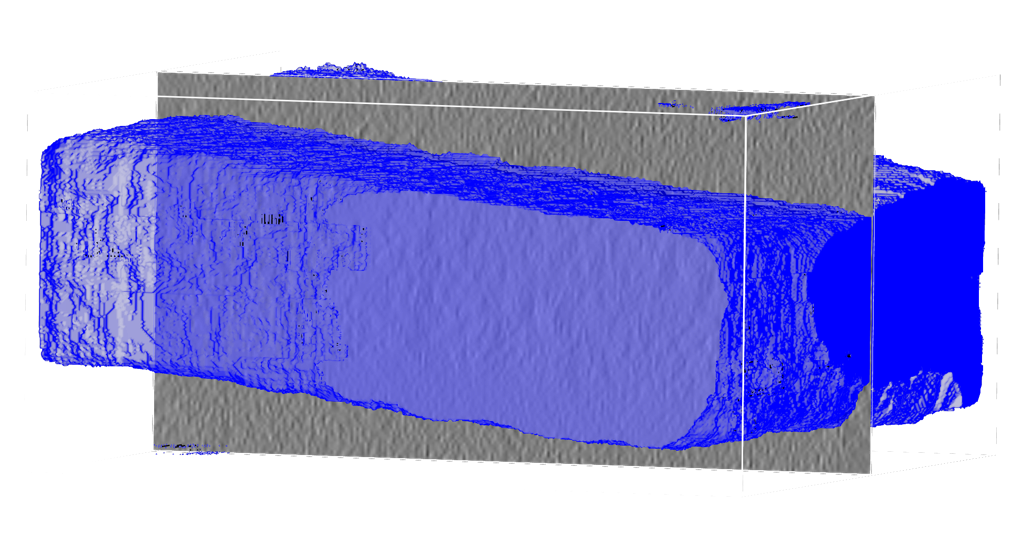

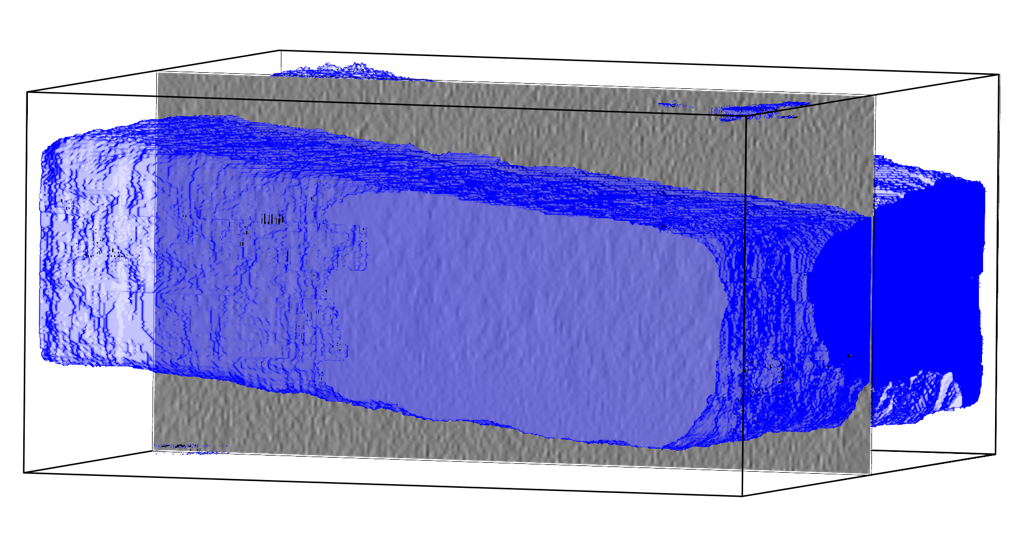

Raw model prediction (segmentation:output/0) overlaid on run 14114. Predictions are blobby and may contain stray components — Step 2 cleans this up.

Step 2: Post-process the prediction into a clean boundary

A raw prediction is rarely a clean slab: it can over- or under-predict and contain stray components. We turn it into a smooth, fitted boundary in two moves — fit a slab to the prediction, then clip it to the valid reconstruction area. This mirrors the ground-truth pipeline from the previous tutorial, but starts from the prediction instead of from manual picks.

Fit a slab to the prediction

copick convert seg2slab extracts a label from the segmentation, keeps its largest connected component (discarding stray blobs), then fits smooth top and bottom surfaces — the same B-spline machinery used by picks2slab in the previous tutorial.

Our model predicts several classes (0 = background, 1 = sample, 2 = vacuum), so we first split out the sample class and keep its largest component, then fit:

# 1. split the multilabel prediction into per-class binary segmentations
copick process split -c config_evaluate.json \
  -i "segmentation:output/0@7.84" \
  --labels "sample:1,vacuum:2" --output-user-id postproc

# 2. keep only the largest connected component of the sample class
copick process filter-components -c config_evaluate.json \
  -i "sample:postproc/0@7.84" \
  --keep-largest 1 -o "sample:postproc/largest"

# 3. fit the slab to the cleaned sample
copick convert seg2slab -c config_evaluate.json \
  -i "sample:postproc/largest@7.84" \
  --label 1 --method coupled \
  --grid-resolution 5 5 --regularization 5 \
  -o "sample:seg2slab/0"

The --labels "name:value,..." map is needed because the model's output label values (1, 2) differ from the pickable_objects labels in the config. This also requires a vacuum object in the config (copick add object --name vacuum --object-type segmentation --label 25).

Match the fit to your training target

Use the same --method and --regularization you used to build the ground-truth slab with picks2slab. The methods are: spline (two independent surfaces), coupled (one curved surface with two parallel offsets — a curved but exactly parallel slab), or parallel. As a rule of thumb, spline works best for plunge-frozen samples (where the two surfaces vary independently), while coupled is better for lamella samples (where the two surfaces stay parallel at a fixed thickness). Matching the GT settings keeps predicted and ground-truth boundaries directly comparable.

Clip to the valid reconstruction area

Finally, intersect the fitted slab with the valid-area box from the previous tutorial, so the boundary respects the valid reconstruction region:

copick logical meshop -c config_evaluate.json \
  --operation intersection \
  -i "valid-area:bob/0" \
  -i "sample:seg2slab/0" \
  -o "valid-sample:postproc/0"

The result, valid-sample:postproc/0, is a watertight slab "box" mesh (a curved top, a parallel bottom, and four side walls) approximating the specimen volume.

clean-boundary clean-boundary

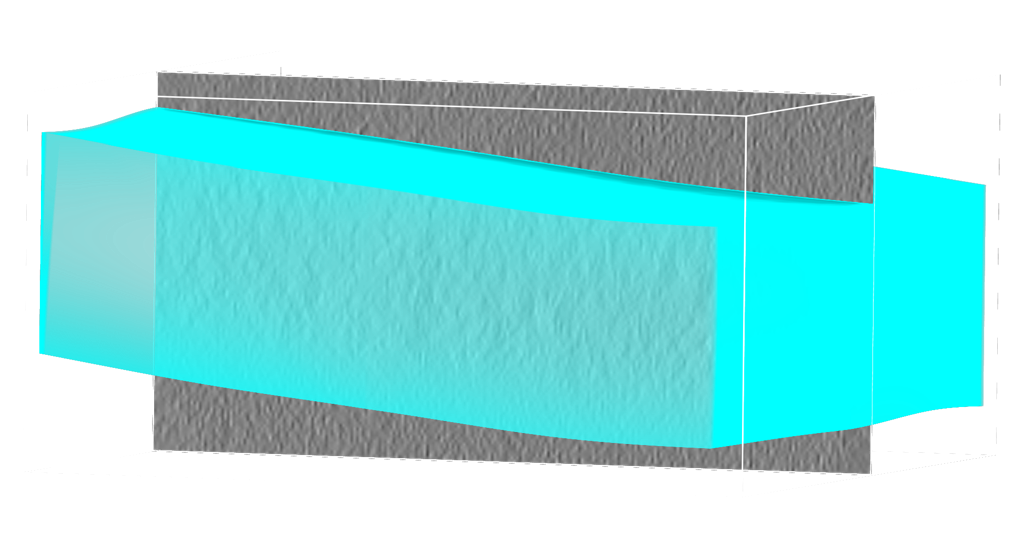

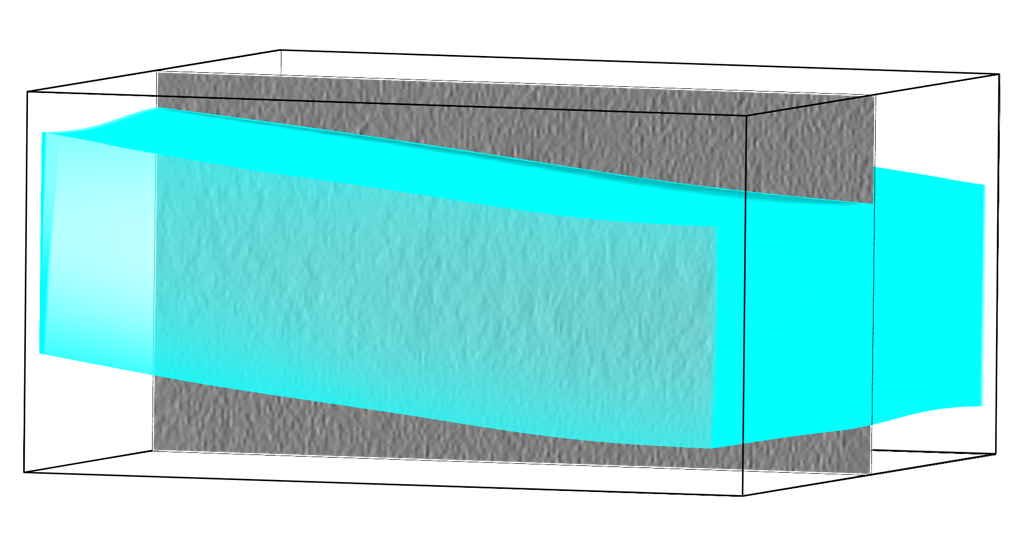

The post-processed boundary (valid-sample:postproc/0) for run 14114 — a clean, fitted slab clipped to the valid reconstruction area.
Scoring against the ground truth

If you annotated ground-truth boundaries for these runs (valid-sample:meshop/0 from the previous tutorial), you can measure agreement by rasterizing both meshes onto the same grid with copick convert mesh2seg and comparing them voxelwise (the voxel F1 score equals the Dice coefficient):

copick convert mesh2seg -c config_evaluate.json \
  -i "valid-sample:meshop/0"   --tomo-type wbp -o "valid-sample:gt-seg/0@7.84"
copick convert mesh2seg -c config_evaluate.json \
  -i "valid-sample:postproc/0" --tomo-type wbp -o "valid-sample:pred-seg/0@7.84"

Both segmentations are rasterized with the exact watertight ray-caster used to build the training targets, so the comparison is apples-to-apples.

Step 3: Filter particles by position in the specimen

Now we use the boundary to select particles. A common goal is to keep particles inside the specimen but away from the top and bottom surfaces — for instance to exclude particles near the air–water interface, which are often damaged or preferentially oriented.

The subtlety: we want distance to the top/bottom only, not to the lateral side walls of the slab box. The key tool is copick convert mesh2caps, which extracts only the top and bottom surfaces ("caps") of the slab and discards the side walls.

Extract the slab caps

copick convert mesh2caps -c config_evaluate.json \
  -i "valid-sample:postproc/0" \
  --surface both \
  -o "valid-sample:mesh2caps/0"

We write the caps back under the same valid-sample object, just with a different user/session (mesh2caps/0), so the box (valid-sample:postproc/0) and the caps (valid-sample:mesh2caps/0) sit side by side in the viewers.

Output objects must be in your config

The output name (the part before the :) must be one of the pickable_objects in your config — copick will not write a mesh or pick set to an unregistered object, and the viewers (ChimeraX-copick, napari-copick) only display artifacts whose object is configured. That's why we reuse valid-sample here rather than inventing a new valid-sample-caps object. If you do want a dedicated object for the caps, add it first with copick add object -c config_evaluate.json --name valid-sample-caps --object-type segmentation --label 3.

Why extract the caps?

clippicks (below) measures distance to the entire reference mesh. If we used the full slab box, its four side walls would pull in particles near the lateral edges and pollute the "distance from top/bottom" measurement. mesh2caps removes the walls so distance is measured to the top/bottom surfaces only.

slab-caps slab-caps

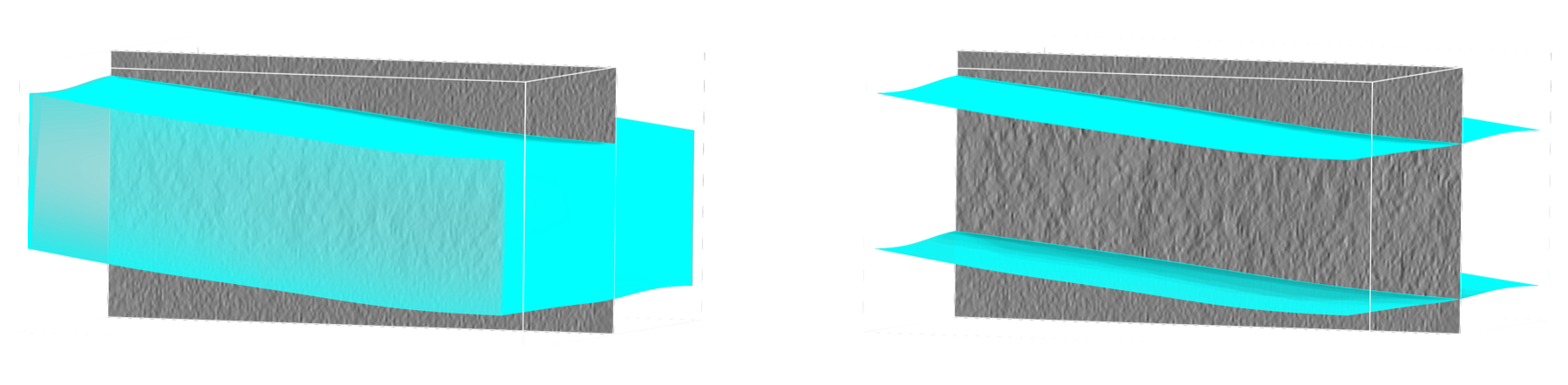

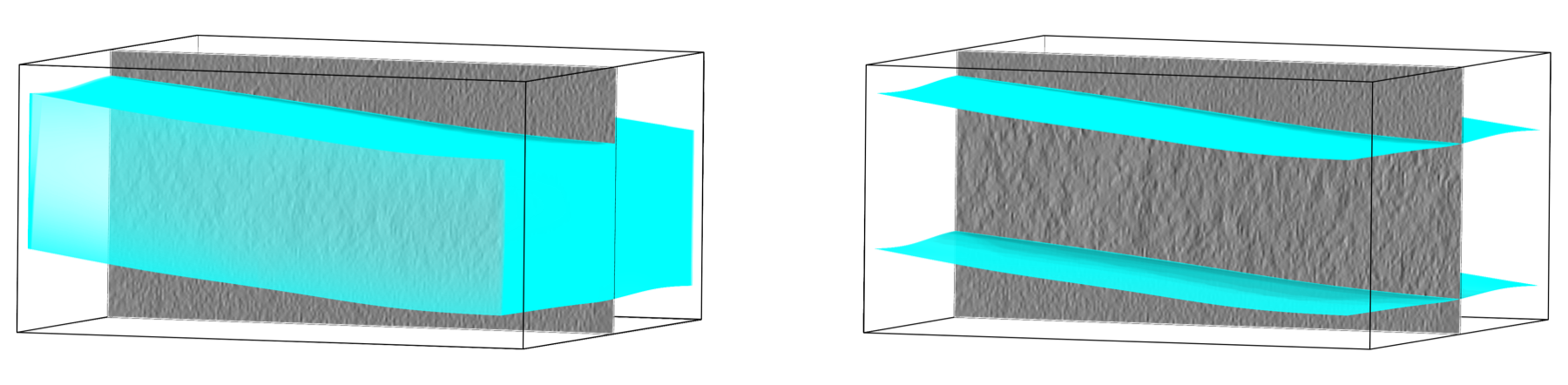

The closed slab box (left) and the extracted caps (right): mesh2caps keeps the near-horizontal top/bottom surfaces and drops the near-vertical side walls.

Select the particles

First, keep only the picks that fall inside the watertight slab, using copick logical picksin:

copick logical picksin -c config_evaluate.json \
  -i "nucleosome:alice/0" \
  -rm "valid-sample:postproc/0" \
  -o "nucleosome:inside/0"

Then, select picks by their distance to the caps with copick logical clippicks. The 200 Å (20 nm) threshold defines the edge-exclusion zone:

Keep picks beyond 200 Å from the top/bottom — the bulk middle of the specimen:

copick logical clippicks -c config_evaluate.json \
  -i "nucleosome:inside/0" \
  -rm "valid-sample:mesh2caps/0" \
  -d 200 -mvs 20 --invert \
  -o "nucleosome:interior/0"

Keep picks within 200 Å of the top/bottom instead — e.g. to study surface effects:

copick logical clippicks -c config_evaluate.json \
  -i "nucleosome:inside/0" \
  -rm "valid-sample:mesh2caps/0" \
  -d 200 -mvs 20 \
  -o "nucleosome:near-surface/0"

The only difference is dropping --invert.

Mesh voxelization spacing (-mvs)

clippicks rasterizes the reference mesh at -mvs Å to build its distance field. Use 20–40 Å for large slabs; a fine -mvs 10 over a big, thin slab is slow and memory-hungry.

The result, nucleosome:interior/0, contains the picks inside the specimen and away from the top/bottom edges.

filtered-particles

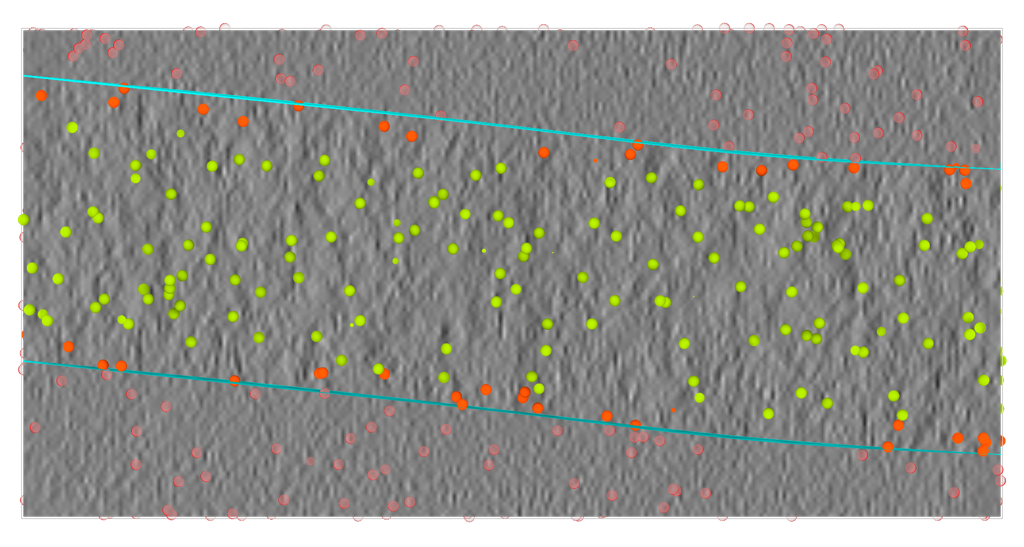

Input picks (nucleosome:alice/0) split into kept interior picks (nucleosome:interior/0, highlighted) and discarded near-surface picks. The caps define the edge-exclusion zone.
mesh2caps options
  • --surface {both,top,bottom} — extract both caps, or just the top or bottom (e.g. to measure distance to one surface only).
  • --angle-threshold — maximum angle (degrees) between a face normal and the slab axis for a face to count as a cap rather than a side wall (default 45).
  • --axis {x,y,z} — the slab-normal axis (default z, the beam direction).
  • --auto-axis — infer the slab normal automatically, useful for strongly tilted slabs.

Putting it all together

You now have a complete path from a trained model to a position-filtered particle list. The same three stages apply to a single run or to an entire project (drop the -runs/-r flags to process all runs).

Full pipeline (copy/paste)
# 1. inference — predict the valid sample region
octopi segment -c config_evaluate.json \
  -mc outputs/model_config.yaml -mw outputs/best_model_weights.pth \
  -uri wbp@7.84 -suri segmentation:output/0 \
  -runs 14114,14132,14137,14163

# 2. post-process into a clean, fitted boundary
copick convert seg2slab -c config_evaluate.json \
  -i "segmentation:output/0@7.84" --label 2 \
  --method coupled --grid-resolution 5 5 --regularization 5 \
  -o "sample:seg2slab/0"
copick logical meshop -c config_evaluate.json --operation intersection \
  -i "valid-area:bob/0" -i "sample:seg2slab/0" \
  -o "valid-sample:postproc/0"

# 3. filter particles to the bulk interior
copick convert mesh2caps -c config_evaluate.json \
  -i "valid-sample:postproc/0" --surface both \
  -o "valid-sample:mesh2caps/0"
copick logical picksin -c config_evaluate.json \
  -i "nucleosome:alice/0" -rm "valid-sample:postproc/0" \
  -o "nucleosome:inside/0"
copick logical clippicks -c config_evaluate.json \
  -i "nucleosome:inside/0" -rm "valid-sample:mesh2caps/0" \
  -d 200 -mvs 20 --invert -o "nucleosome:interior/0"
